Basic Rod-End Tips, 5pcs in a set (IR-MC01)

Name: Basic Rod-End Tips, 5pcs in a set (IR-MC01)
Brand: IR Robot
SKU: IR-MC01
Price: 6.80 USD
Availability: InStock

$6.80 USD

Digital Archive

User Manual Drawings Data sheet

* If you click the button above, the new window will open and move to the digital archive page of our headquarter's website. Please make sure to return to the current website to complete the product purchase after referring to the data.

Product description

The Rod End Tip included as standard accessory when purchasing an actuator.
This is an optional accessory when you need additional one.

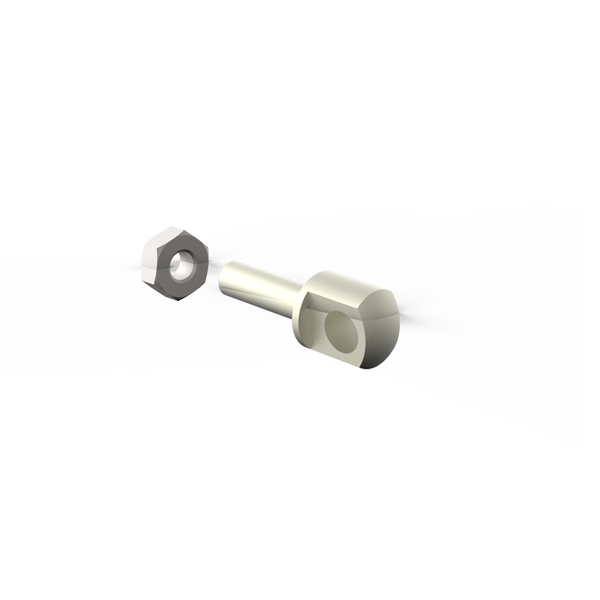

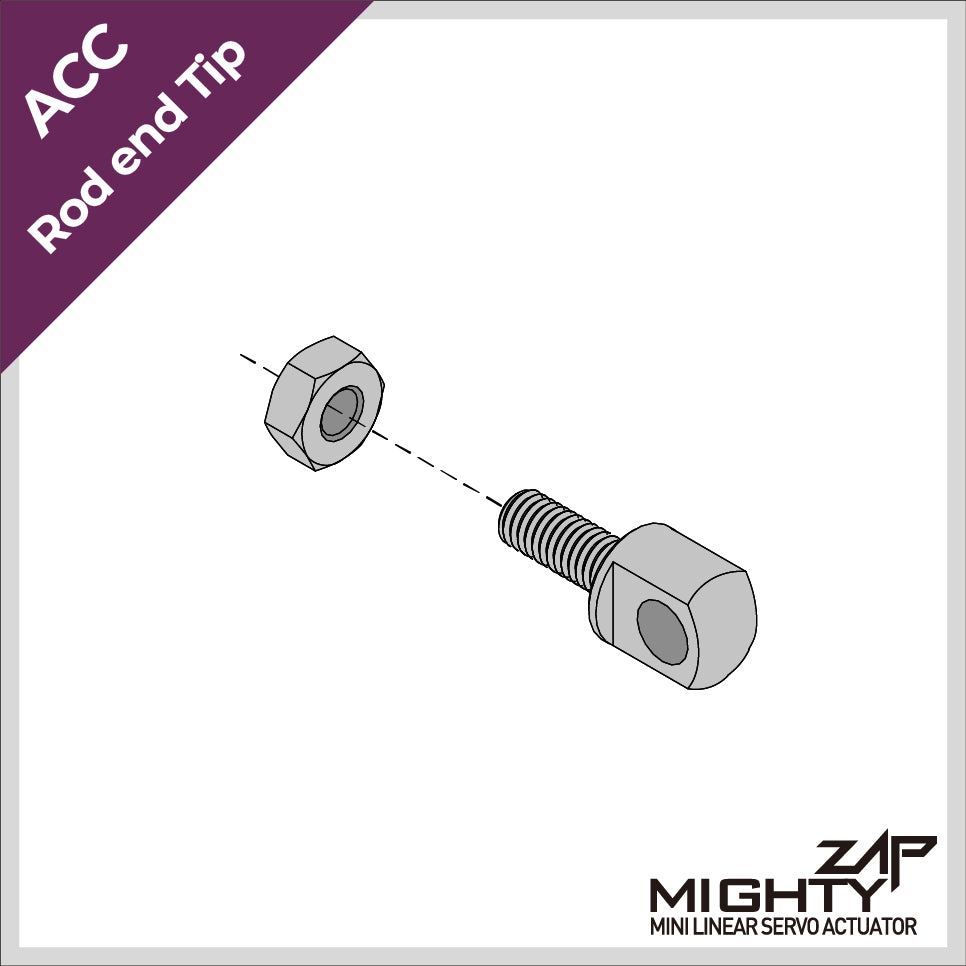

Supplied with M3 nuts and packed 5pcs in a set.

Components

Rod-End Tip : 5EA
M3 Nut : 5EA

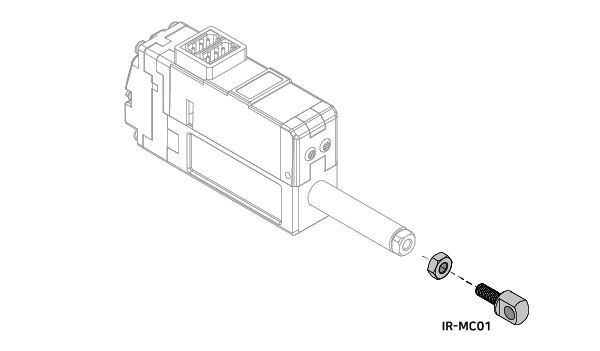

Example of utilization

The IR-MC01 is an old rod-end tip that was provided as a standard accessory along with the actuator before February, 2025. After February, 2025, a new SUS Rod-End Tip (IR-MC06) is provided as a standard accessory to improve the strength. The IR-MC06 and IR-MC01 have been produced with different materials and their size/shape are also slightly different, so please carefully review which tip you need before placing order.

For a size comparison of each tip, see here.
