End Bearing (IR-EB01)

Home > Products > Accessories > End Bearing (IR-EB01)

Accessories

End Bearing (IR-EB01)

$11.00 USD
$11.00 USD

Digital Archive

User Manual Drawings Data sheet

* If you click the button above, the new window will open and move to the digital archive page of our headquarter's website. Please make sure to return to the current website to complete the product purchase after referring to the data.

Product description

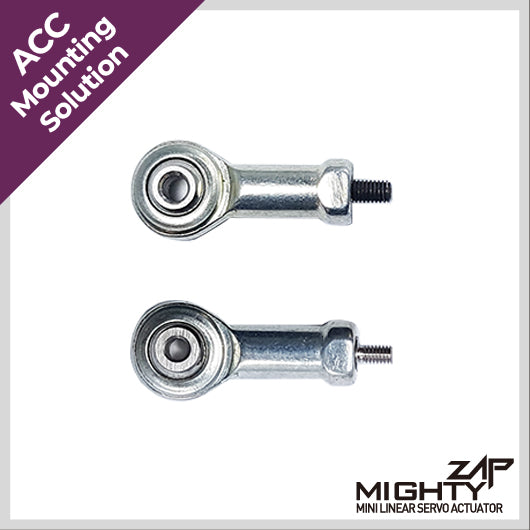

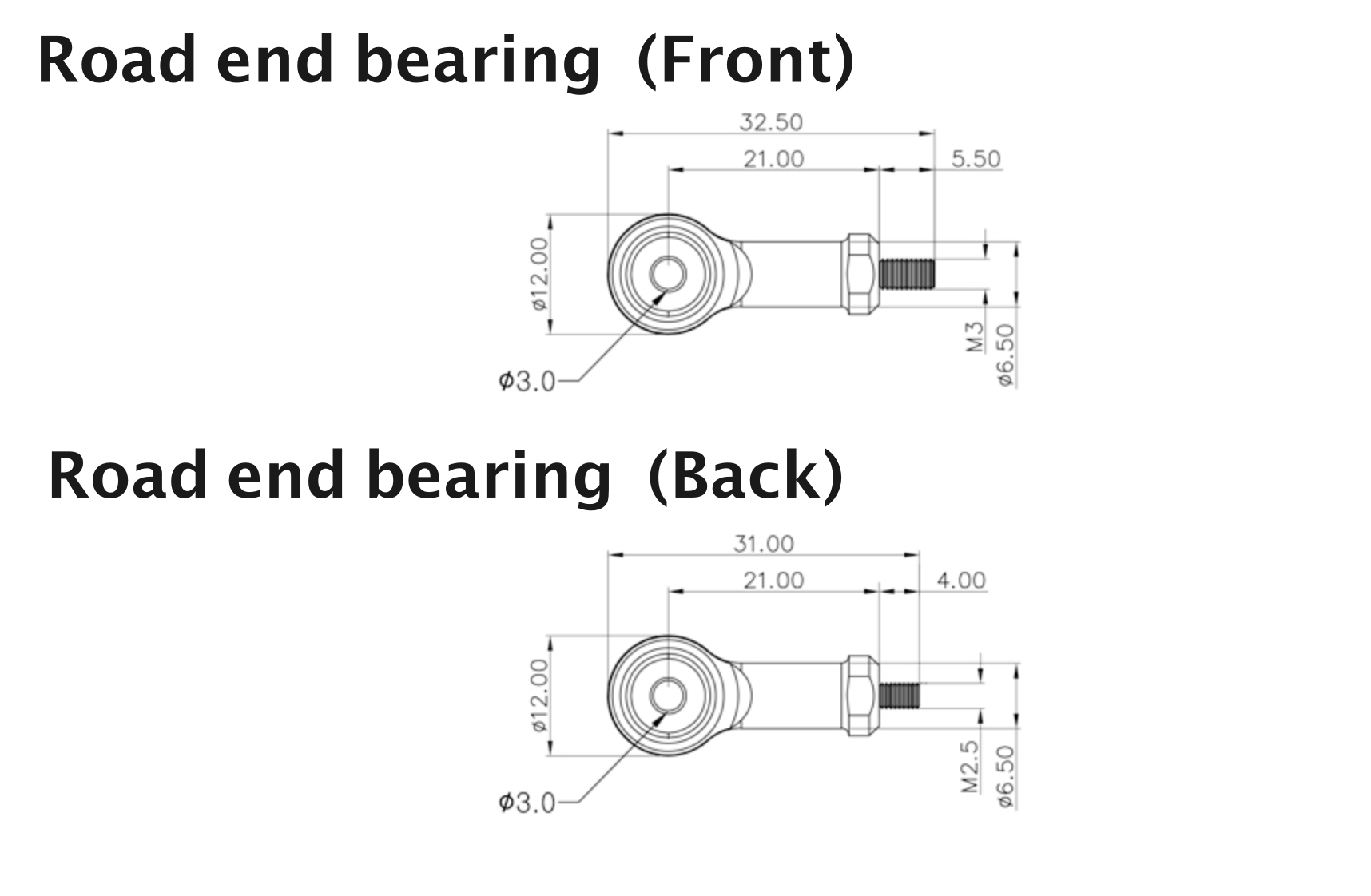

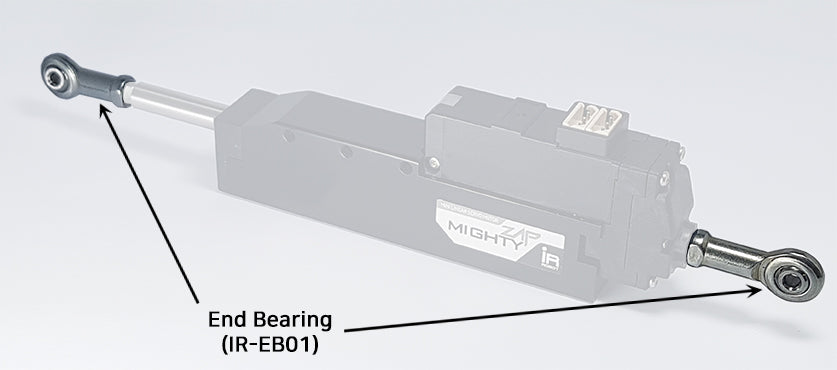

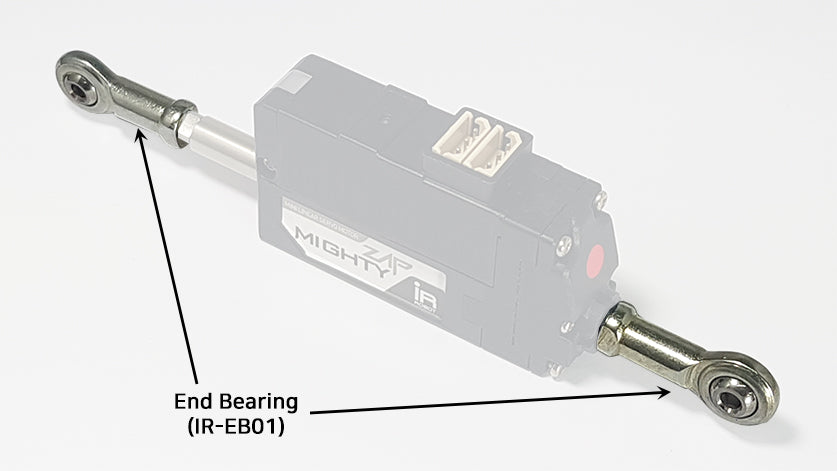

End bearing (IR-EB01) allows you to mount MightyZAP on your applications by attaching rod end (M3.0) and servo case (M2.5). Please reference below for better understanding.

This product includes
1. End bearing (M3.0 / Black) : 1ea
2. End bearing (M2.5 / Silver) : 1ea
3. Spring washer : 2ea
4. Washer : 1ea

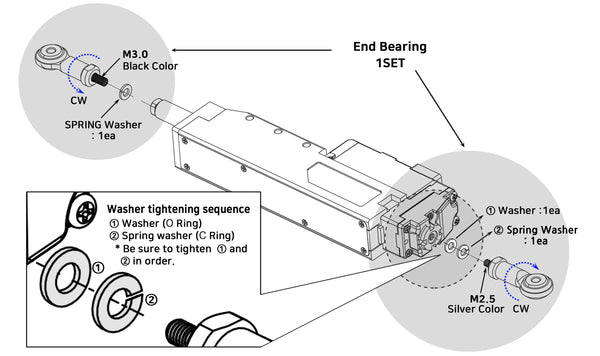

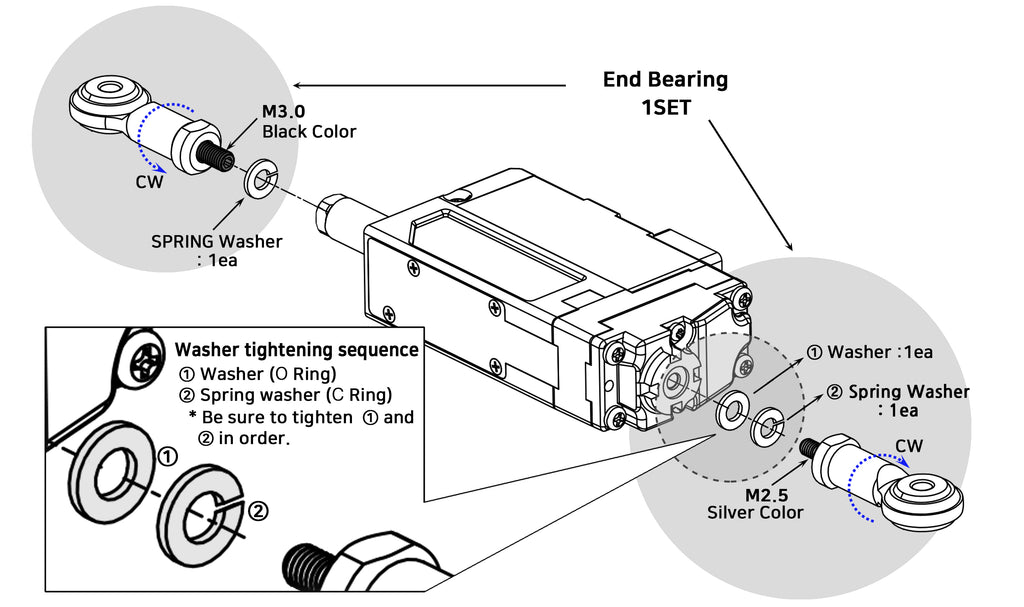

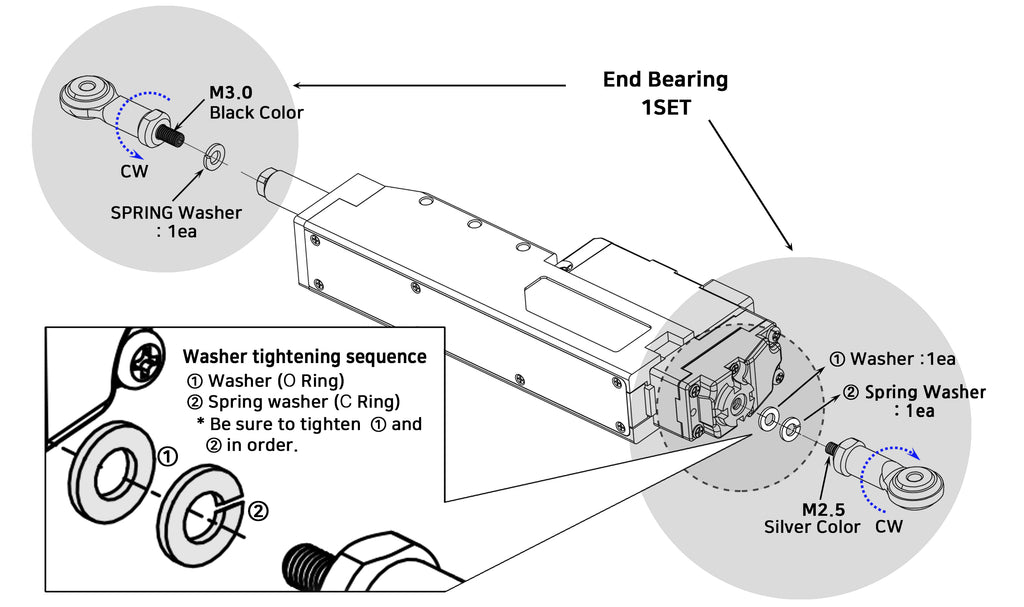

* Make sure to fix the end bearings by paying attention to the order of the washer as shown in the picture above.
* Failure to tighten in order may cause malfunction or product damage.

+ Installation manual can be downloaded in our website(Click) .
