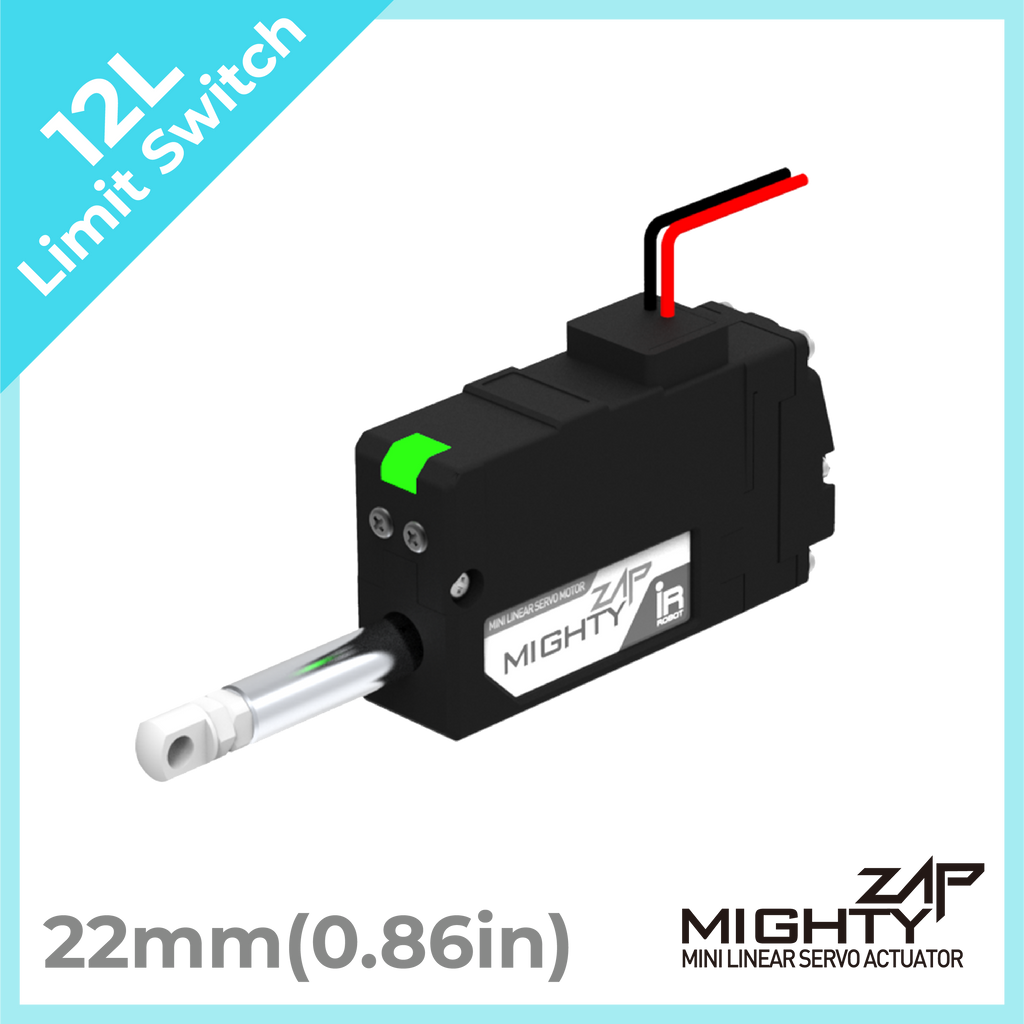

[ 12L Limit Switch Series ] - 22mm(0.86in) stroke, Coreless Motor
![[ 12L Limit Switch Series ] - 22mm(0.86in) stroke, Coreless Motor](http://mightyzapusa.com/cdn/shop/files/240221_T_12L_22mm.png?v=1708502366&width=3840)
Home > Products > 12L MINI Limit Switch Series > [ 12L Limit Switch Series ] - 22mm(0.86in) stroke, Coreless Motor
12L MINI Limit Switch Series
Mini/Nano Size
Built-in Limit Switches
Max 22mm Stroke (12L / 12D MINI)
Max 15mm Stroke(12D NANO)
Heavy Duty, Durable 12V Coreless Moter Lineup (12L MINI)
Economical 12V / 7.4V Cored Motor Lineup (12D MINI & NANO)

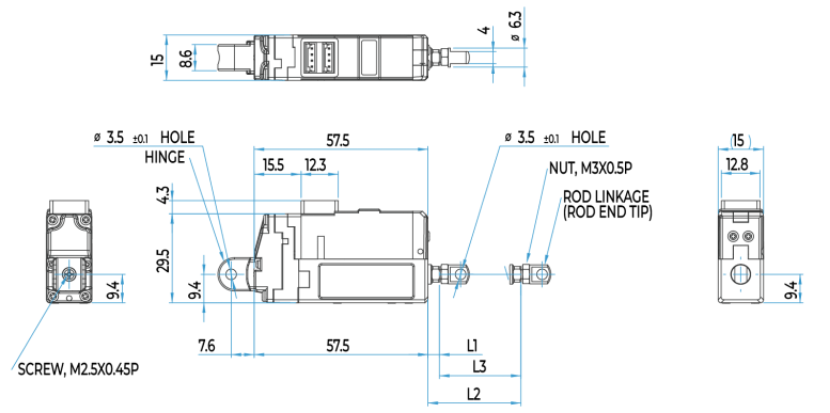

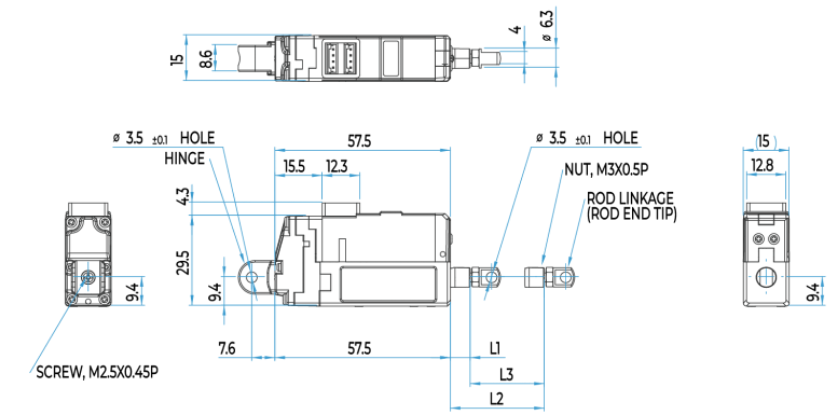

| Rated Load | Stroke | Input Volt : 12V | Rated Load / Max Speed (No Load) | Mechanical Self Lock (Z Axis Use) | Gear Ratio / Gear Type | Motor Type / Watt |
|---|---|---|---|---|---|---|
| 35N | 22mm | 12L-35S-22 | 35N / 28mm/s | Yes (Applicable) |
10:1 / Engineering Plastic gears | Coreless DC Motor / 3.5W |
| 55N | 12L-55S-22 | 55N / 15mm/s | 20:1 / 4 Metal & 2 Engineering Plasticgears | Coreless DC Motor / 3.5W | ||
| 100N | 12L-100S-22 | 100N / 7.7mm/s | 50:1 / 4 Metal & 2 Engineering Plasticgears | Coreless DC Motor / 3.5W |
| Stroke | 22mm | |||||
|---|---|---|---|---|---|---|
| Repeatability (Unidirectional) | 500μm (0.5mm) | |||||
| Mechanical Backlash | 0.03mm (30μm) | |||||
| Rod Type | Metal Alloy Rod | |||||
| Motor Type | Coreless DC Motor | |||||
| Watt | 3.5W | |||||
| Recommended Duty Cycle | At Rated Load | At Max Applicable Load | ||||
| Max 50% | Max 20% | |||||
| Input Voltage Range | 7 ~ 13V (Rated 12V) | |||||
| Current Consumption | Idle | Rated | Max (Stall) | |||
| 50mA | 380mA | 1.5A | ||||
| Audible Noise | Approx. 50db at 1m | |||||
| Ingress Protection | IP-54 (Dust & Water Tight) | |||||
| Size / Weight (Excluding rod-end & hinge) | 57.4(L)x29.9(W)x15(H)mm / 48g | |||||
| Operating Temperature | -10℃ ~ 60℃ | |||||
| Wire Harness | 0.08×60 (AWG 22), 300mm | |||||
| INDEX | DIMENSION |
|---|---|
| L1 (MIN POSITION) | 3.8 ± 0.5 |
| L2 (MAX POSITION) | 25.6 ± 0.5 |
| L3 (STROKE) | 21.8 (= L2 – L1) |
| INDEX | DIMENSION |
|---|---|
| L1 (MIN POSITION) | 6.5 ± 0.5 |
| L2 (MAX POSITION) | 28.3 ± 0.5 |
| L3 (STROKE) | 21.8 (= L2 – L1) |

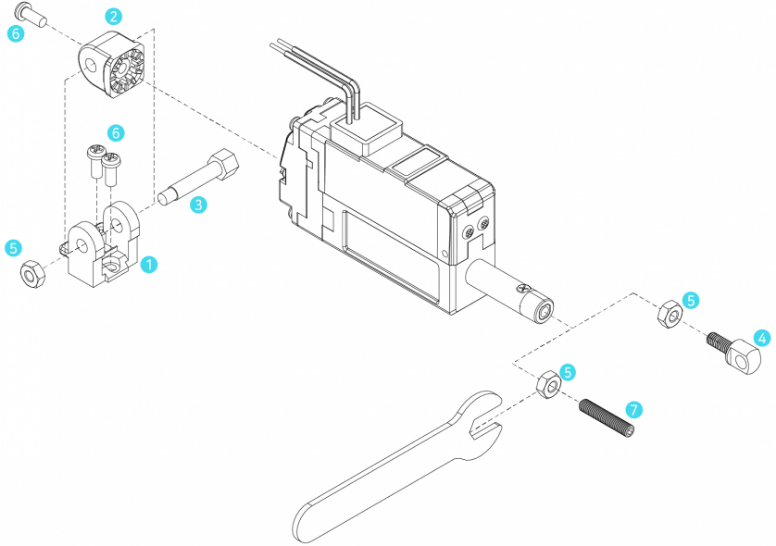

Hinge Base 1pc
Hinge 1pc
Hinge Shaft 1pc
SUS Rod End Tip 1pc
M3 NUT 3pcs
M2.5x6 Screws 3pcs
Socket Set Screw 1pc
Wrench for M3 NUT 1pc
2
Hinge is rotatable by 90degree according to the mounting condition. Without hinge, actuator can be mounted using IR-MB06 (for 27mm stroke version) or IR-MB07 (for 37/50/87mm stroke version) Metal brackets. Also, IR-EB01 Rid end bearing is also one of mounting option. Please refer to the mounting manual for each accessory.
8
SUS Rod-end tip and
7
soket-set screw can be used according to user’s need.
Or, user may apply their own rod-end tip (M3 standard). Make sure to put
5
M3 nut before applying rod-end tip. The M3 nut is a double nut concept for angle adjustment of rod-end tip mounting.
When mounting rod-end tip, make sure to fix the M3 nut and the rod-end tip by the tool (such as long nose) to set angle and to prevent the rod from turnig together. (If not, it may cause damage to the product. the rod should not be turned all the time.)
· Setting for various operation parameters & memory parameters
- Baud rate, ID, Delay, Stroke limit, Compliance margin setting
- Goal Speed, Goal Position, Goal Current, LED Alarm, Shutdown setting
- Acceleration / Deceleration Setting
· Simple Motion Test
· System reset and Firmware update
· Motor Operating Rate, Voltage, Temperature, Position, Current real time monitoring
· Need optional PC USB Interface “IR-USB02” (Sold separately)
· Windows compatible mightyZAP manager PC software enables users to set various parameters & test motions. (Able to downloaded from our website for free)
· PC Software will be updated from time to time, so it is recommended for the user to download and update PC software properl
