Product description

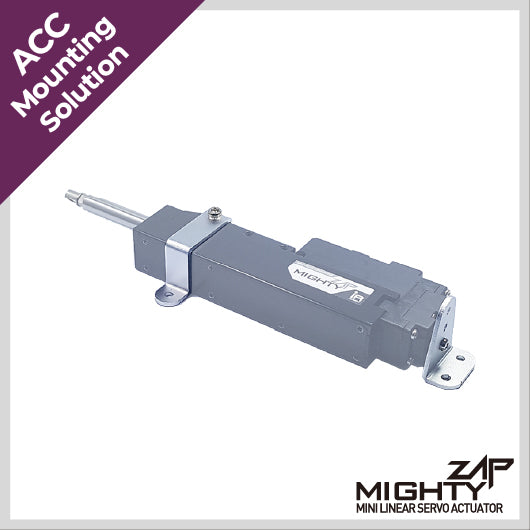

This metal bracket is for 40mm(1.57in) ~ 96mm(3.78in) stroke versions of MightyZap Mini Linear Servo Actuators.

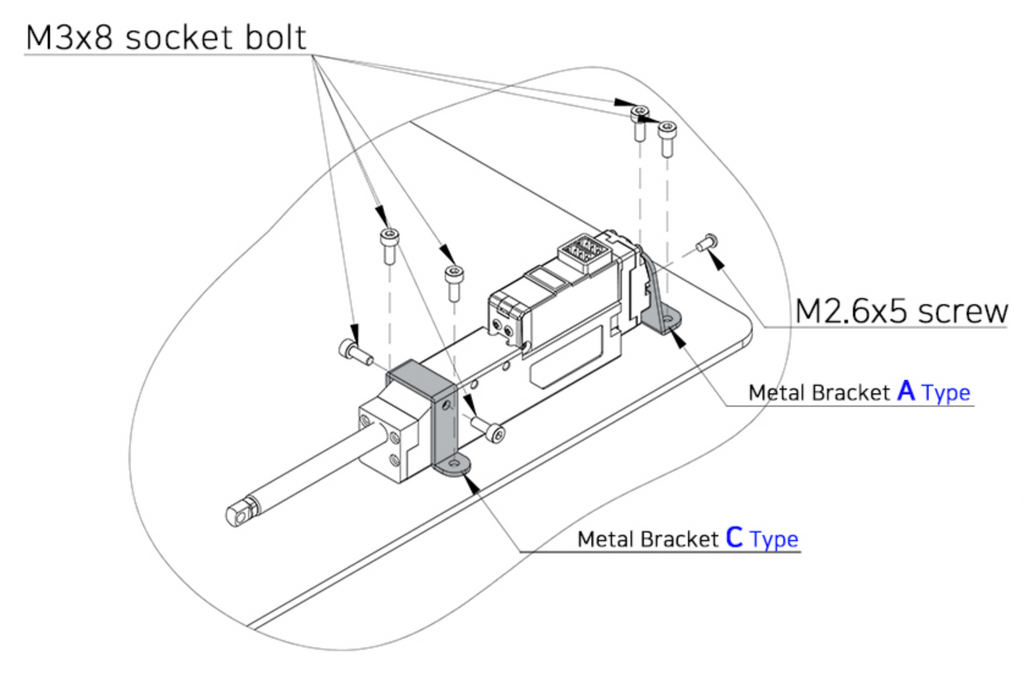

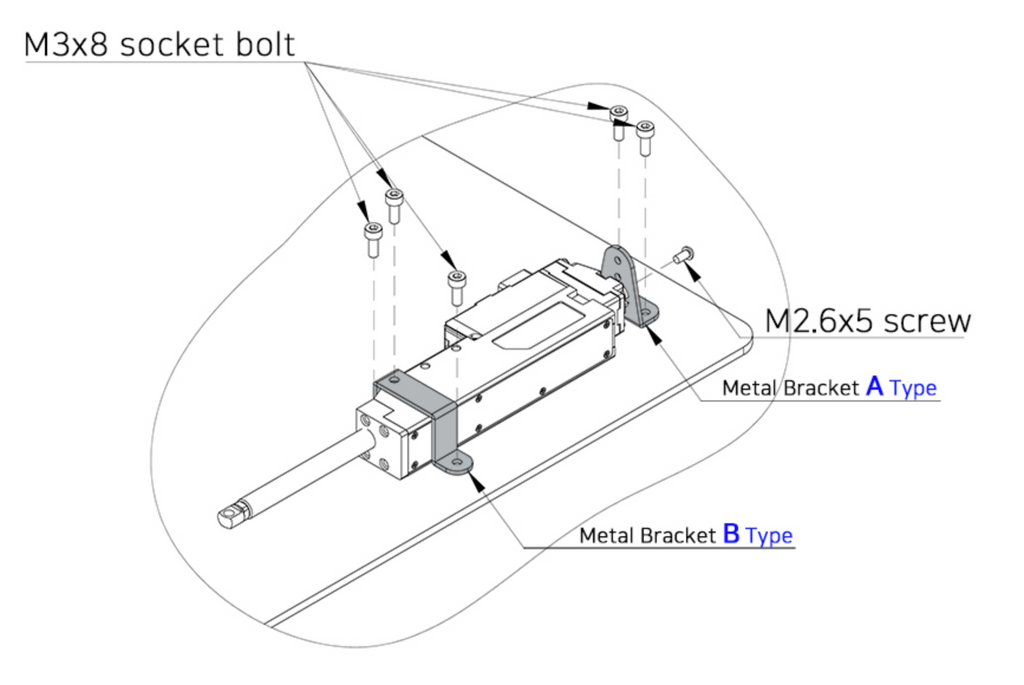

How to mount MightyZAP(40mm(1.57in) ~ 96mm(3.78in) stroke version)
  • Using End bearing(IR-EB01)
  • Using Tap holes on servo motor case without brackets

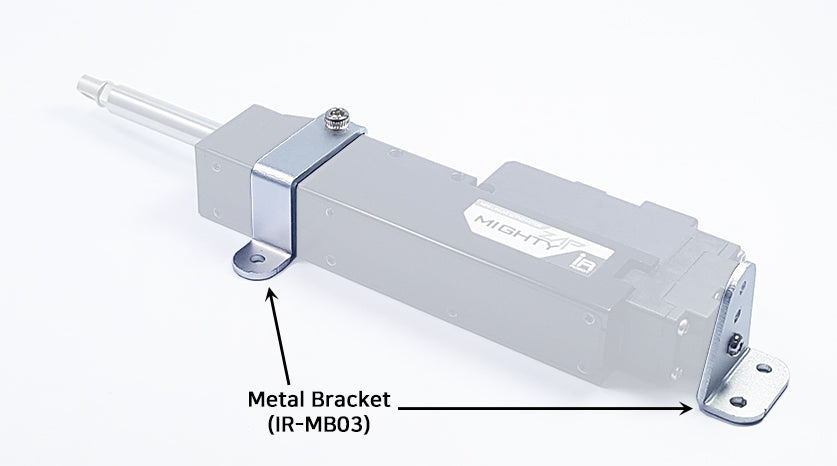

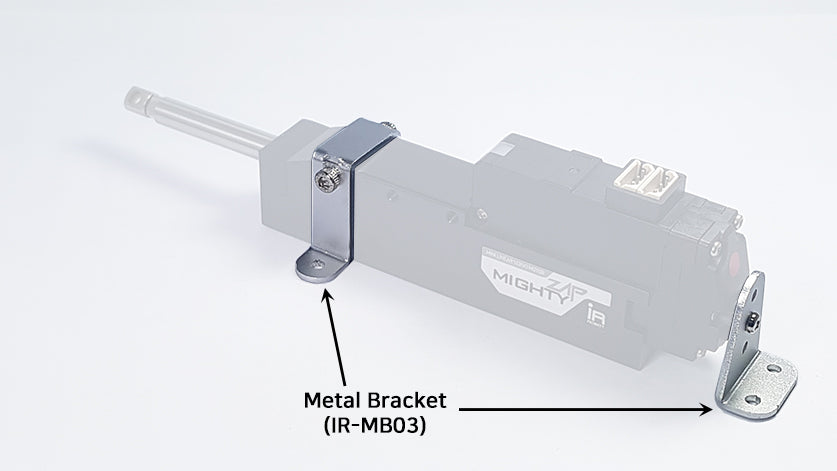

  • Metal Bracket (IR-MB03 which is dedicated 12Lf/L12 40mm(1.57in) ~ 96mm(3.78in) Stroke Version)
  • Not compatible with 17Lf series



Installation manual can be downloaded from our web(click).
