Metal Bracket (IR-MB04) - 12Lf/L12 (22mm,0.86in), D12/D7(26mm,1.02in), 12L/12D(27mm,1.06in) Stroke Version Vertical mounting

$16.80 USD

Metal Bracket (IR-MB04) - 12Lf/L12 (22mm,0.86in), D12/D7(26mm,1.02in), 12L/12D(27mm,1.06in) Stroke Version Vertical mounting

Home > Products > Accessories > Metal Bracket (IR-MB04) - 12Lf/L12 (22mm,0.86in), D12/D7(26mm,1.02in), 12L/12D(27mm,1.06in) Stroke Version Vertical mounting

Accessories

Metal Bracket (IR-MB04) - 12Lf/L12 (22mm,0.86in), D12/D7(26mm,1.02in), 12L/12D(27mm,1.06in) Stroke Version Vertical mounting

Name: Metal Bracket (IR-MB04) - 12Lf/L12 (22mm,0.86in), D12/D7(26mm,1.02in), 12L/12D(27mm,1.06in) Stroke Version Vertical mounting
Brand: IR Robot
SKU: IR-MB04
Price: 16.80 USD
Availability: InStock

$16.80 USD

Digital Archive

User Manual Drawings Data sheet

* If you click the button above, the new window will open and move to the digital archive page of our headquarter's website. Please make sure to return to the current website to complete the product purchase after referring to the data.

Product description

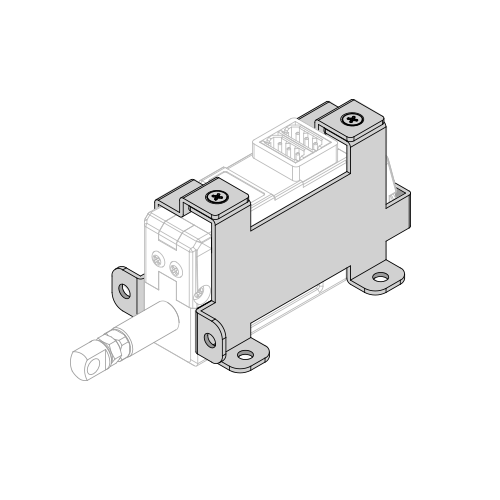

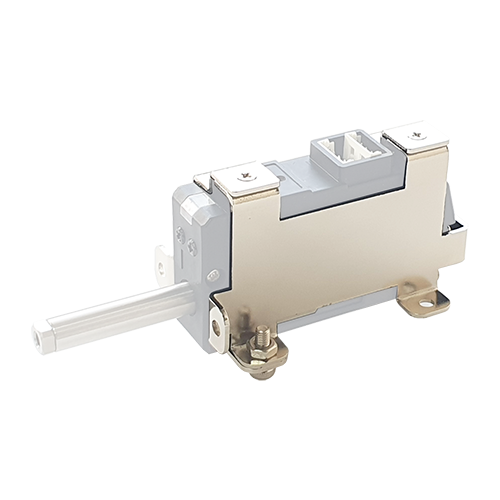

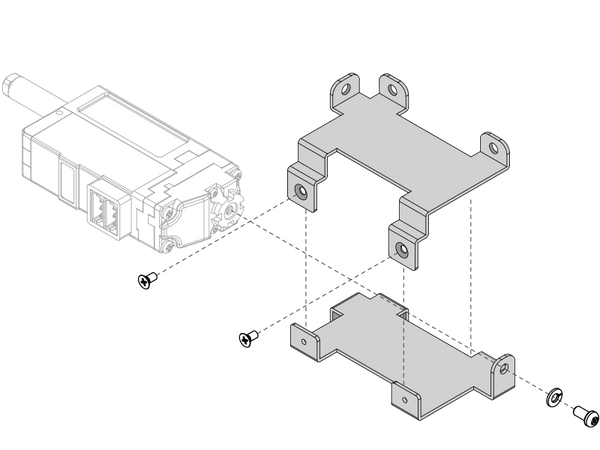

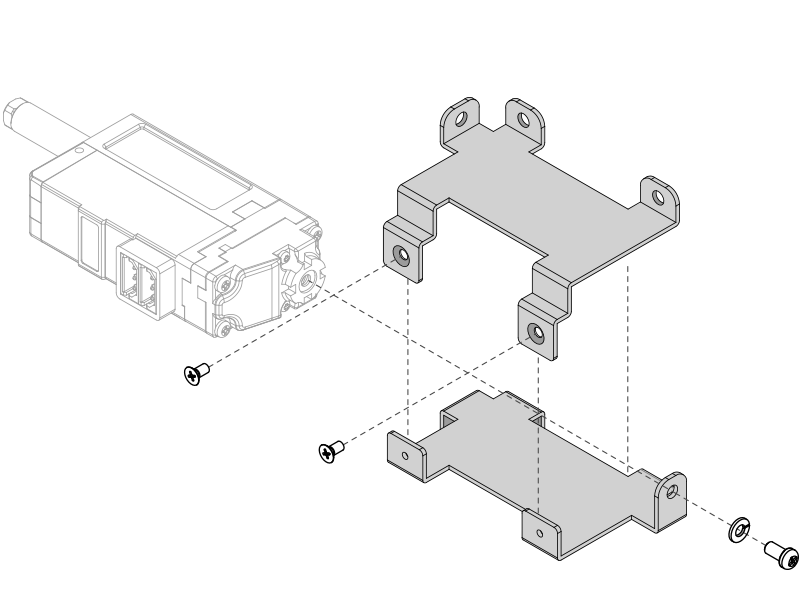

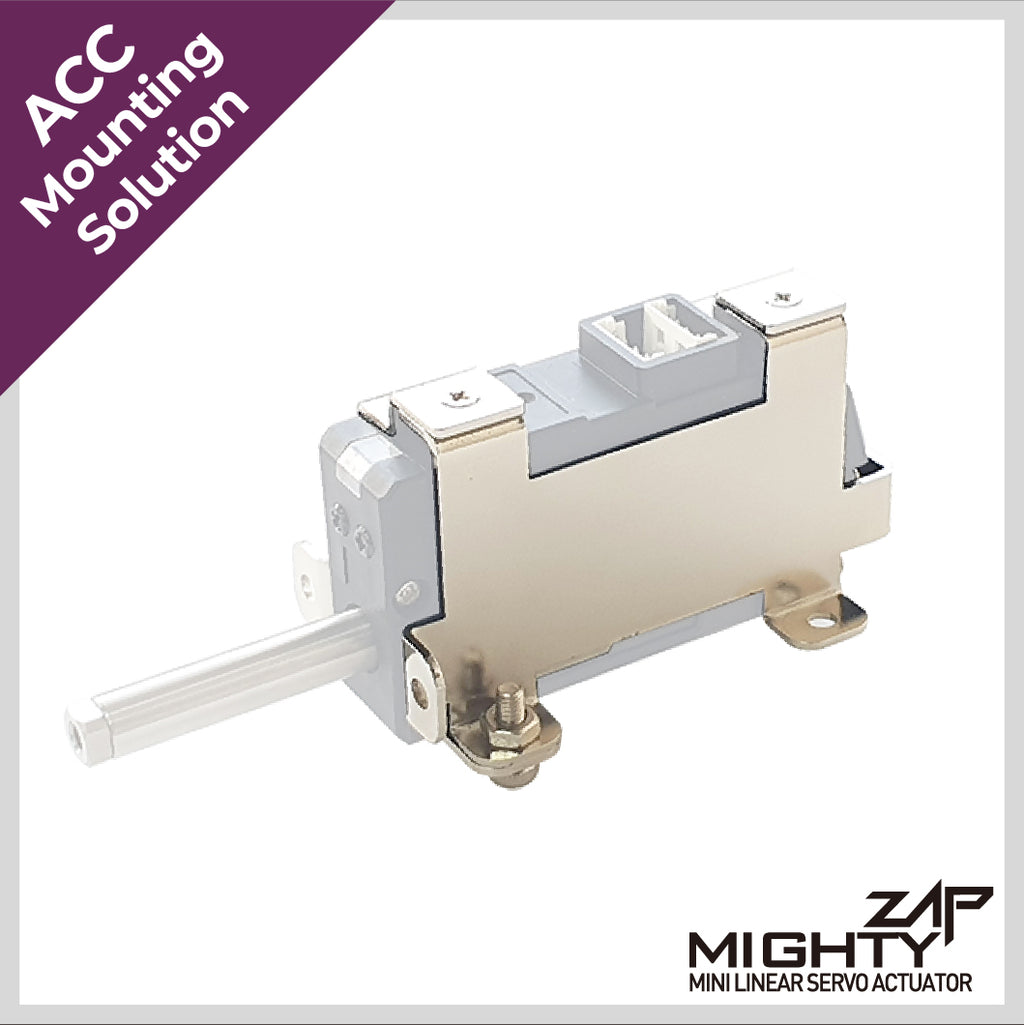

Use IR-MB04 metal bracket to mount the servo onto applications tightly. Referring to published drawings, user is also able to make this bracket at their end if necessary.
This is for 22mm(0.86in), 26mm(1.02in) & 27mm(1.06in) stroke version as 40mm(1.57in) ~ 96mm(3.78in) stroke versions have built-in mounting holes on it.

- For 12Lf/L12(27mm,1.06in), D12/D7(26mm,1.02in), 12L/12D(22mm,0.86in) series.
- Not compatible with 17Lf series
