Features

  • Mini Size

  • Built-in Drive (RS-485 or PWM/TTL)

  • Speed Control (12Df)

  • Position Control

  • Current Control / Feedback (12Df)

  • Position Feedback via Data Communication

  • Economical 12V / 7.4V DC Cored Motor

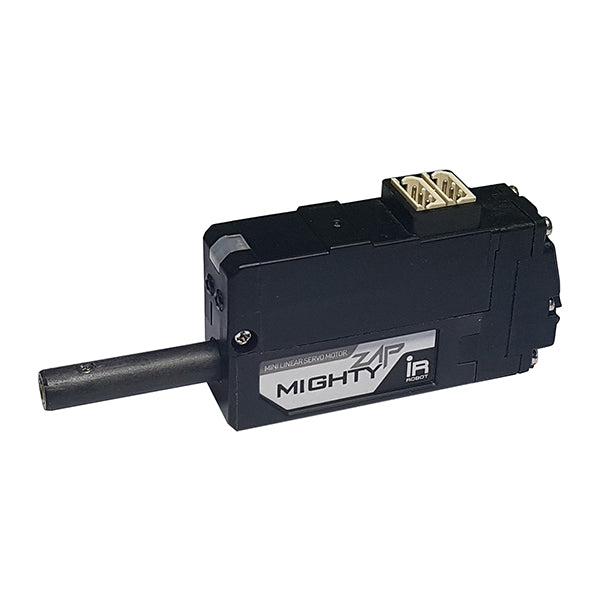

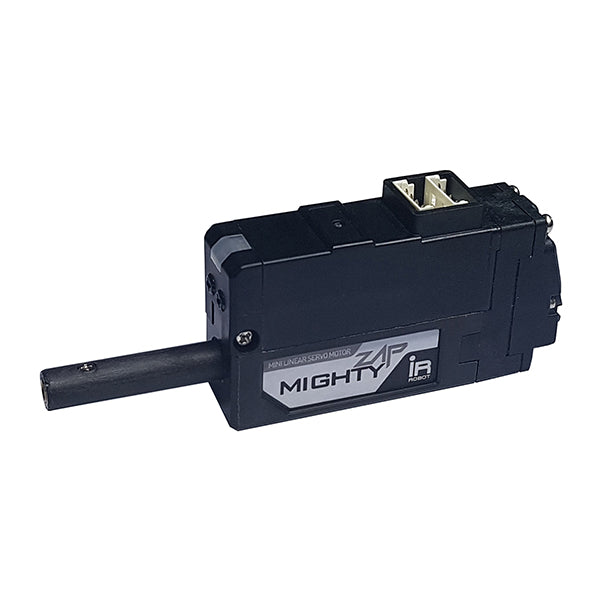

12Df/D12/D7 Servo Series Specifications

Rated Load Stroke Input Volt : 12V Input Volt : 7.4V Rated Load / Max Speed (No Load) Mechanical Self Lock (Z Axis Use) Lead Screw / Gear Ratio / Gear Type Motor Type / Watt
RS-485 TTL/PWM RS-485 TTL/PWM
6N 26mm (D12/D7) 27mm (12Df) D12-6F-3 12Df-6F-27 D12-6PT-3 12Df-6PT-27 D7-6F-3 D7-6PT-3 6N / 36mm/s No (Not Applicable) Lead Angle 15° / 10:1 / Engineering Plastic Gears Cored Motor / 0.9W
12N D12-12F-3 12Df-12F-27 D12-12PT-3 12Df-12PT-27 D7-12F-3 D7-12PT-3 12N / 12mm/s Yes (Applicable) Lead Angle 5° / 10:1 / Engineering Plastic Gears

(*): Maximum stroke length when adjusting long stroke limit through Total Manager software

12Df/D12/D7 Servo Series Common Specifications

Repeatability Stroke Unidirectional
27mm (12Df series) / 26mm (D12/D7 series) 30μm(0.03mm)
Mechanical Backlash 0.03mm(30μm)
Gear Ratio 10:1
Gear Type Engineering Plastic Gears
Rod Type Metal Rod (12Df series) / Engineering Plastic Rod (D12/D7 series)
Motor Type Cored Motor
Watt 0.9W
Recommended Duty Cycle At Rated Load At Max Applicable Load
Max 50% Max 20%
Position Sensor 10KΩ linear Potentiometer
Input Voltage Range 12V lineup : 7~13V (Rated : 12V) / 7.4V lineup : 6.5~8.9V(Rated 7.4V)
Current Consumption 7.4V Lineup (D7) 12V Lineup (12Df / D12)
Idle Rated Stall Idle Rated Stall
30mA 250mA 0.48A 30mA 140mA 0.3A
Audible Noise 약 50db at 1m
Data Communication / Protocol RS-485 or TTL / IR open protocol & MODBUS RTU (12Df), IR open protocol (D12/D7)
LED Indication 2 Errors Indications (Input voltage, Overload)
Pulse Signal / Pulse Range PWM (PT version, R/C Hobby Signal) / 900μs(Retracted)-1500μs(Center)-2100μs (Extended)
Ingress Protection IP-54 (Dust & Water Tight)
Size / Weight
(Excluding rod-end & hinge)

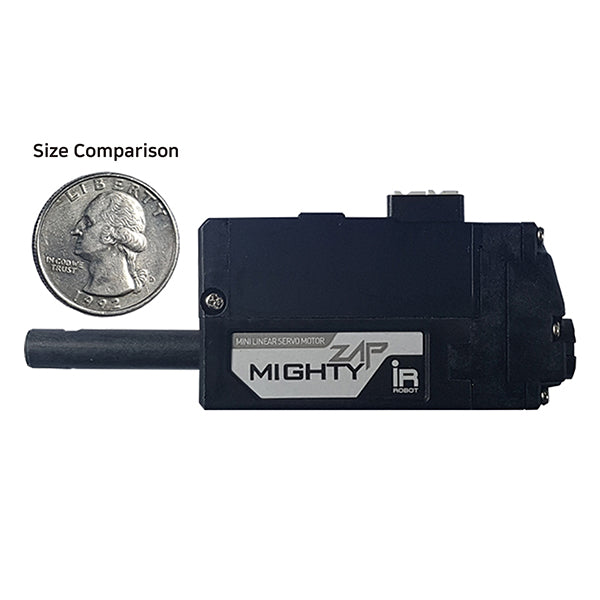

57.4(L)x29.9(W)x15(H)mm / 49~52g
Operating Temperature -10℃ ~ 60℃

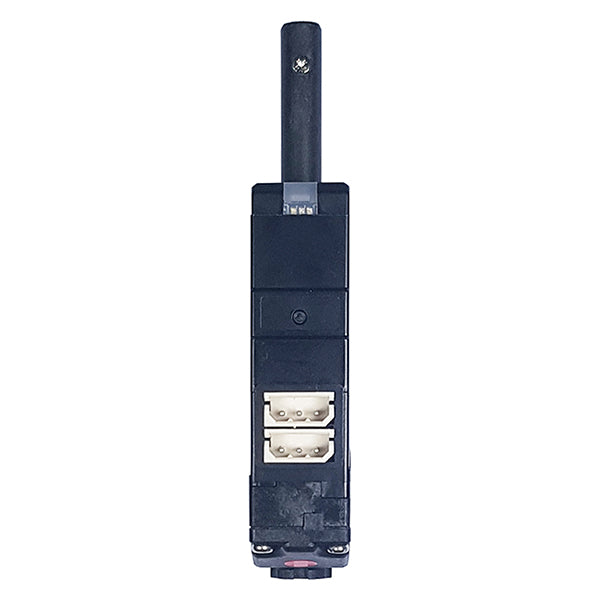

Wire Harness TTL(PT version) : Molex to Molex Type
(Molex 50-37-5033, 3pins) / 200mm length, 0.08×60(22AWG)

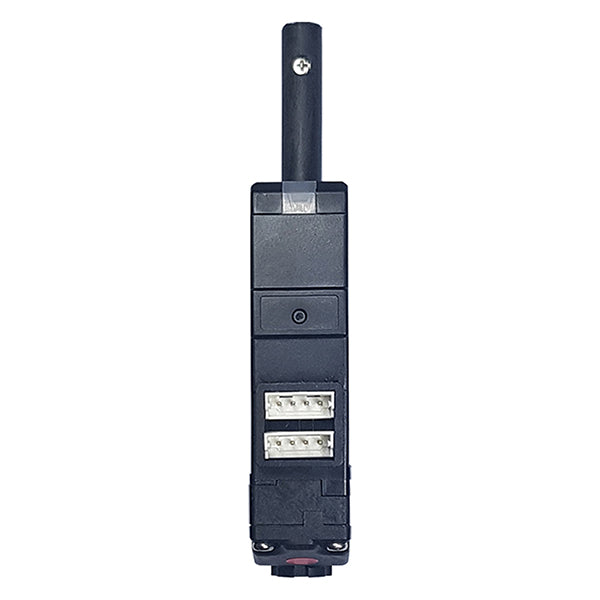

or RS485(F version) : Molex to Molex Type (Molex 0510650400, 4pins) / 200mm length, 0.08×60(22AWG)

(*): Maximum stroke length when adjusting long stroke limit through Total Manager software

Dimensions

12Df series – 27mm Stroke
[UNIT : mm]
INDEX DIMENSION
L1 (MIN POSITION) 3.8 ± 0.5
L2 (MAX POSITION) 30.8 ± 0.5
L3 (STROKE) 27 (= L2 – L1)

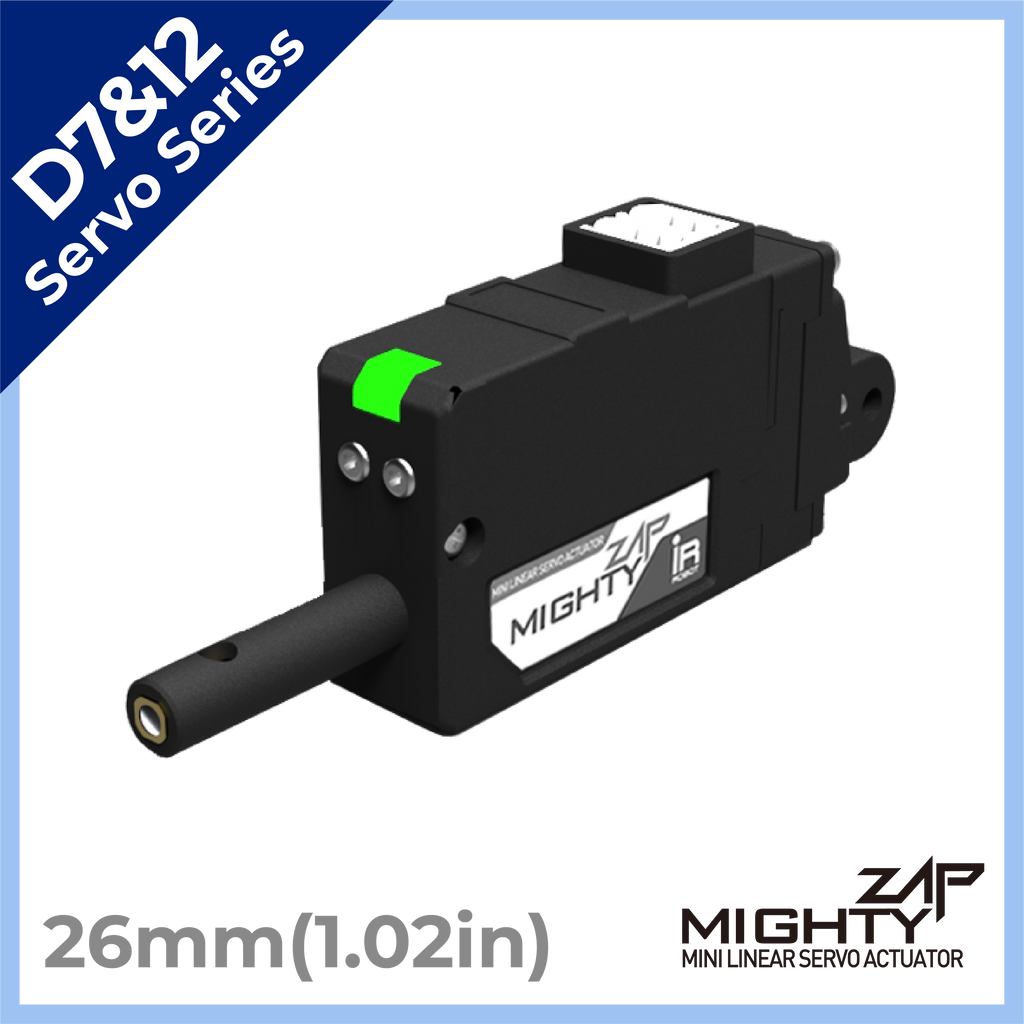

D12 / D7 series- 26mm stroke
[UNIT : mm]
INDEX DIMENSION
L1 (MIN POSITION) 1.8 ± 0.5
L2 (MAX POSITION) 27.8 ± 0.5
L3 (STROKE) 26 (= L2 – L1)

12Df/D12/D7 Servo Series Standard Accessories

  • Hinge Base 1pc

  • Hinge 1pc

  • Hinge Shaft 1pc

  • SUS Rod End Tip 1pc

  • M3 NUT 3pcs

  • M2.5x6 Screws 3pcs

  • Socket Set Screw 1pc

  • Wire 4Pin Molex to Molex (RS-485), 200mm

  • Wire 3Pin Molex to Molex(TTL/PWM), 200mm

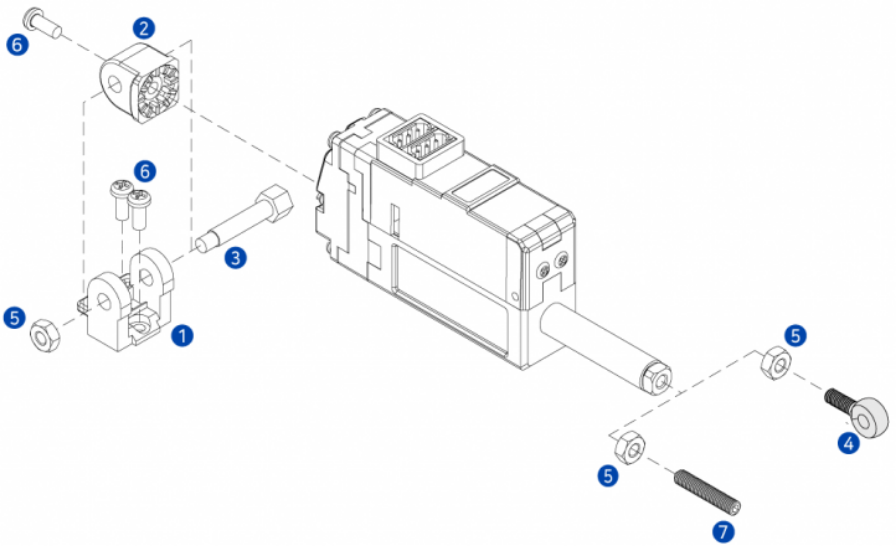

Example for Application of Standard Accessories

2 Hinge is rotatable by 90degree according to the mounting condition. Without hinge, actuator can be mounted using IR-MB06 (for 27mm stroke version) or IR-MB07 (for 37/50/87mm stroke version) Metal brackets. Also, IR-EB01 Rid end bearing is also one of mounting option. Please refer to the mounting manual for each accessory.

8 SUS Rod-end tip and 7 soket-set screw can be used according to user’s need.

Or, user may apply their own rod-end tip(M3 standard). Make sure to put 5 M3 nut before applying rod-end tip. The M3 nut is a double nut concept for angle adjustment of rod-end tip mounting.

When mounting rod-end tip, make sure to fix the M3 nut and the rod-end tip by the tool (such as long nose) to set angle and to prevent the rod from turnig together. (If not, it may cause damage to the product. the rod should not be turned all the time.)

PC Software MightyZAP Manager

· Setting for various operation parameters & memory parameters
- Baud rate, ID, Delay, Stroke limit, Compliance margin setting
- Goal Speed, Goal Position, Goal Current, LED Alarm, Shutdown setting
- Acceleration / Deceleration Setting

· Simple Motion Test

· System reset and Firmware update

· Motor Operating Rate, Voltage, Temperature, Position, Current real time monitoring

· Need optional PC USB Interface “IR-USB02” (Sold separately)

· Windows compatible mightyZAP manager PC software enables users to set various parameters & test motions. (Able to downloaded from our website for free)

· PC Software will be updated from time to time, so it is recommended for the user to download and update PC software properl
