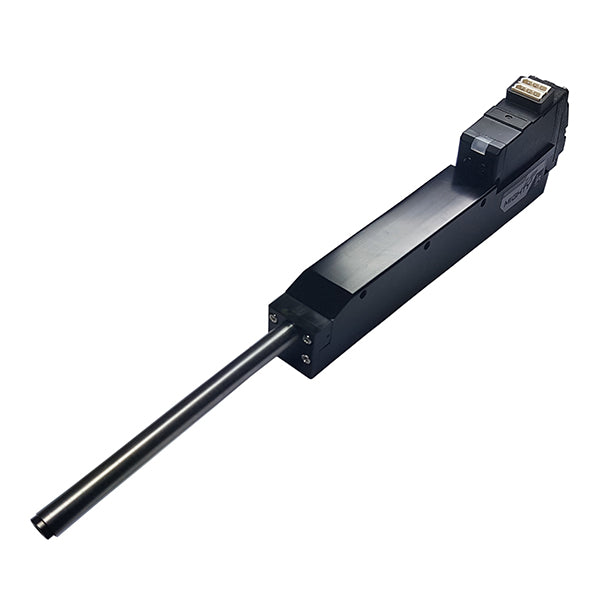

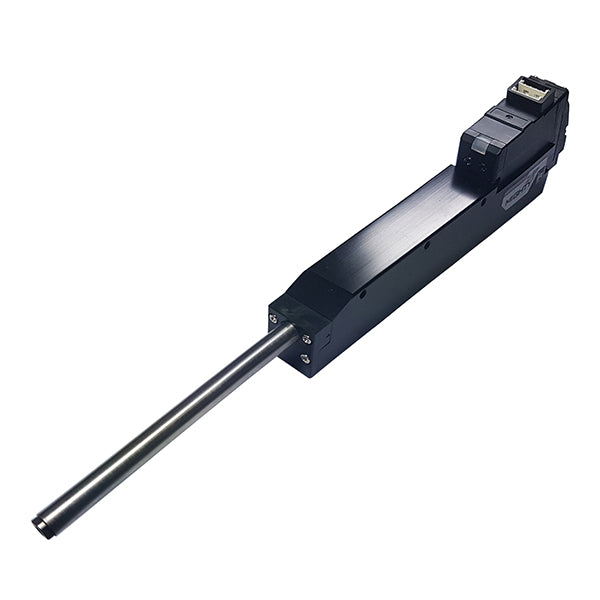

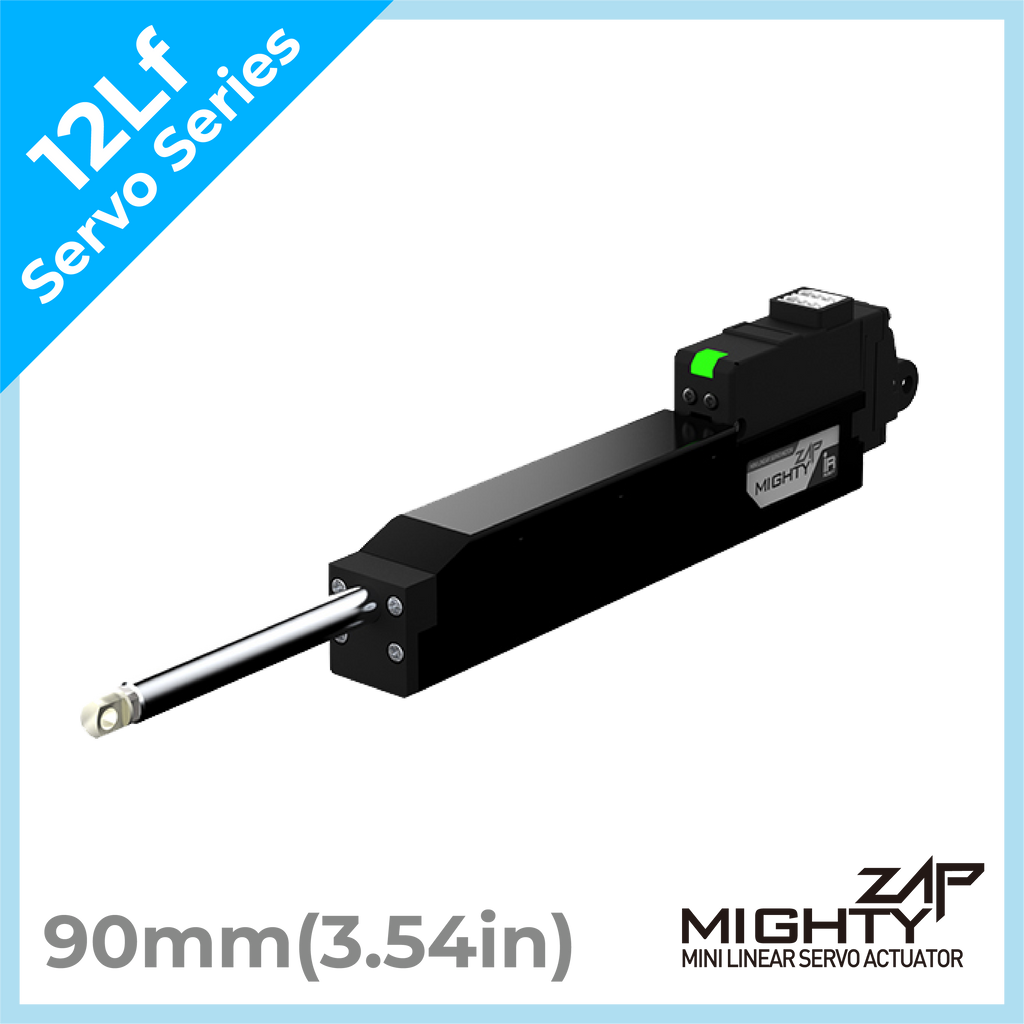

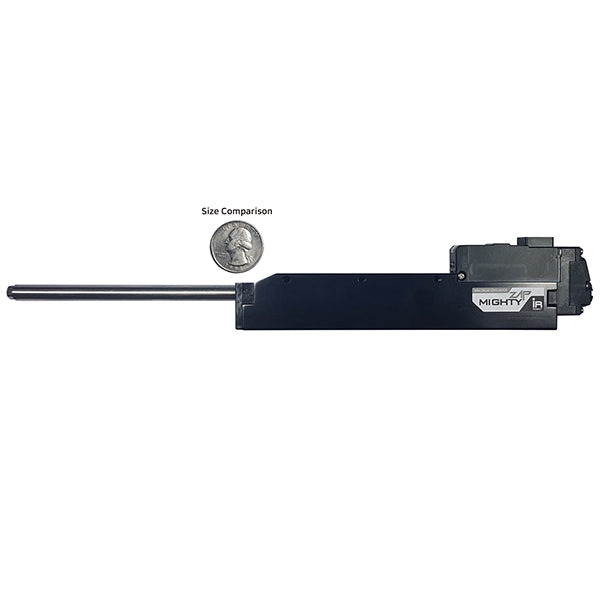

[ 12Lf Servo Series ] - 90mm(3.54in) stroke

[ 12Lf Servo Series ] - 90mm(3.54in) stroke

12V / 10N / 110mm/s (2.2lbf / 4.33in/s) / PWM/TTL
$240.40 USD
$240.40 USD
Skip to product information
[ 12Lf Servo Series ] - 90mm(3.54in) stroke
  • [ 12Lf Servo Series ] - 90mm(3.54in) stroke
  • [ 12Lf Servo Series ] - 90mm(3.54in) stroke
  • [ 12Lf Servo Series ] - 90mm(3.54in) stroke
  • [ 12Lf Servo Series ] - 90mm(3.54in) stroke
  • [ 12Lf Servo Series ] - 90mm(3.54in) stroke
  • [ 12Lf Servo Series ] - 90mm(3.54in) stroke
  • [ 12Lf Servo Series ] - 90mm(3.54in) stroke
[ 12Lf Servo Series ] - 90mm(3.54in) stroke

Home > Products > 12Lf Servo Series > [ 12Lf Servo Series ] - 90mm(3.54in) stroke

12Lf Servo Series

[ 12Lf Servo Series ] - 90mm(3.54in) stroke

$240.40 USD
$240.40 USD
Voltage12V

12Lf Servo Series Digital Archive

User Manual Drawings Data sheet

* If you click the button above, the new window will open and move to the digital archive page of our headquarter's website. Please make sure to return to the current website to complete the product purchase after referring to the data.

Features

  • Mini Size

  • Built-in Drive (RS-485 or PWM/TTL)

  • Dynamic Speed Control

  • Position Control

  • Current Control

  • Position/Current Feedback via Data Communication

  • 12V Heavy Duty DC Coreless Motor

12Lf Servo Series Specifications

Rated Load Stroke Communication Rated Load /Max Speed (No Load) Stall Force at Current (1.6A/800mA/200mA) Mechanical Self Lock (Z Axis Use) Lead Screw / Gear Ratio / Gear Type
RS-485 TTL/PWM
10N 40mm 12Lf-10F-40 12Lf-10PT-40 10N / 110mm/s 60N / 40N / 19N No (Pay attention to application) Lead Angle 20° / 10:1 / Engineering Plastic Gears
53mm 12Lf-10F-53 12Lf-10PT-53
90mm 12Lf-10F-90 12Lf-10PT-90
12N 27mm 12Lf-12F-27 12Lf-12PT-27 12N / 110mm/s 100N / 60N / 16N
17N 40mm 12Lf-17F-40 12Lf-17PT-40 17N / 80mm/s 100N / 60N / 23N Lead Angle 15° / 10:1 / Engineering Plastic Gears
53mm 12Lf-17F-53 12Lf-17PT-53
90mm 12Lf-17F-90 12Lf-17PT-90
20N 27mm 12Lf-20F-27 12Lf-20PT-27 20N / 80mm/s 120N / 72N / 24N
27N 40mm 12Lf-27F-40 12Lf-27PT-40 27N / 28mm/s 160N / 96N / 33N Yes (Applicable) Lead Angle 4° / 10:1 / Engineering Plastic Gears
53mm 12Lf-27F-53 12Lf-27PT-53
90mm 12Lf-27F-90 12Lf-27PT-90
35N 27mm 12Lf-35F-27 12Lf-35PT-27 35N / 28mm/s 210N / 126N / 59N
42N 40mm 12Lf-42F-40 12Lf-42PT-40 42N / 15mm/s 240N / 144N / 56N Lead Angle 5° / 20:1 / Metal Gear
53mm 12Lf-42F-53 12Lf-42PT-53
55N 27mm 12Lf-55F-27 12Lf-55PT-27 55N / 15mm/s 330N / 250N / 75N
40mm 12Lf-55F-40 12Lf-55PT-40 55N / 10.3mm/s 330N / 250N / 75N Lead Angle 5° / 30:1 / Metal Gear
53mm 12Lf-55F-53 12Lf-55PT-53
75N 27mm 12Lf-75F-27 12Lf-75PT-27 75N / 10.3mm/s 450N / 310N / 100N
78N 40mm 12Lf-78F-40 12Lf-78PT-40 78N / 7.7mm/s 420N / 252N / 93N Lead Angle 5° / 50:1 / Metal Gears
53mm 12Lf-78F-53 12Lf-78PT-53
100N 27mm 12Lf-100F-27 12Lf-100PT-27 100N / 7.7mm/s 600N / 360N / 152N

(*): Maximum stroke length when adjusting long stroke limit through Total Manager software

12Lf Servo Series Common Specifications

Repeatability Stroke Unidirectional
27mm / 40mm 30μm(0.03mm)
53mm 40μm(0.04mm)
90mm 50μm(0.05mm)
Mechanical Backlash 0.03mm(30μm)
Rod Type MetalAlloy Rod
Motor Type Coreless DC Motor (12mm diameter)
Rated Voltage 12V
Watt 3.5W
Recommended Duty Cycle At Rated Load At Maximum Applicable Load
Max 50% Max 20%
Current Accuracy ±15%at Over 50mA
Position Sensor 10KΩlinear Potentiometer
Input Voltage Range 7 ~13V
Current Consumption Idle Rated Stall
Default MAX
20mA 380mA 800mA 1.6A
Audible Noise Approx. 50db at 1m
LED Indication Two Errors Indications (Input voltage, Overload)
Pulse Signal / Pulse Range PWM (PT version, R/C Hobby Signal)
900μs(Retracted)-1500μs(Center)-2100μs (Extended)
Data Communication / Protocol RS-485 or TTL(PT version) / IR Robot open protocol & MODBUS RTU protocol
Ingress Protection IP-54(Dust & Water Tight)
Size / Weight (Excluding rod-end & hinge) 27mm 57.5(L)x29.9(W)x15(H)mm/ 49~52g
40mm 86.9(L)x36(W)x18(H)mm/ 96~99g
53mm 111.5(L)x36(W)x18(H)mm/ 124~127g
90mm 151.5(L)x36(W)x18(H)mm/ 약177g
Operating Temperature -10℃~ 60℃
Wire Harness TTL(PTversion) : Molex to Molex Type (Molex 50-37-5033, 3pins) / 200mmlength, 0.08×60(22AWG)
or RS485(F version) : Molex to Molex Type(Molex 0510650400, 4pins) / 200mm length, 0.08×60(22AWG)

(*): Maximum stroke length when adjusting long stroke limit through Total Manager software

Dimensions

27mm Stroke
[UNIT : mm]
INDEX DIMENSION
L1 (MIN POSITION) 3.8 ± 0.5
L2 (MAX POSITION) 30.8 ± 0.5
L3 (STROKE) 27 (= L2 – L1)
40mm Stroke
[UNIT : mm]
INDEX DIMENSION
L1 (MIN POSITION) 3.7 ± 0.5
L2 (MAX POSITION) 43.7 ± 0.5
L3 (STROKE) 40 (= L2 – L1)
53mm Stroke
[UNIT : mm]
INDEX DIMENSION
L1 (MIN POSITION) 4.8 ± 0.5
L2 (MAX POSITION) 57.8 ± 0.5
L3 (STROKE) 53 (= L2 – L1)
90mm Stroke
[UNIT : mm]
INDEX DIMENSION
L1 (MIN POSITION) 5.8 ± 0.5
L2 (MAX POSITION) 96.3 ± 0.5
L3 (STROKE) 90 (= L2 – L1)

12Lf Servo Series Standard Accessories

  • Hinge Base 1pc

  • Hinge 1pc

  • Hinge Shaft 1pc

  • SUS Rod End Tip 1pc

  • M3 NUT 3pcs

  • M2.5x6 Screws 3pcs

  • Socket Set Screw 1pc

  • Socket head M3.0x8 mounting bolt 3pcs (40mm – 95mm Stroke line-up only)

  • Wire 4Pin Molex to Molex (RS-485), 200mm

  • Wire 3Pin Molex to Molex(TTL/PWM), 200mm

  • Wrench for M3 NUT 1pc

Example for Application of Standard Accessories

2 Hinge is rotatable by 90degree according to the mounting condition. Without hinge, actuator can be mounted using IR-MB06 (for 27mm stroke version) or IR-MB07 (for 37/50/87mm stroke version) Metal brackets. Also, IR-EB01 Rid end bearing is also one of mounting option. Please refer to the mounting manual for each accessory.

8 Socket head bolts are not included in 27mm stroke version. (they are for 41/56/96mm stroke versions.) IR-MB03 metal bracket or IR-EB01 Rod end bearing can be another mounting option.

4 SUS Rod-end tip and 7 soket-set screw can be used according to user’s need.

Or, user may apply their own rod-end tip(M3 standard). Make sure to put 5 M3 nut before applying rod-end tip. The M3 nut is a double nut concept for angle adjustment of rod-end tip mounting.

When mounting rod-end tip, make sure to fix the M3 nut and the rod-end tip by the tool (such as long nose) to set angle and to prevent the rod from turnig together. (If not, it may cause damage to the product. the rod should not be turned all the time.)

PC Software MightyZAP Manager

· Setting for various operation parameters & memory parameters
- Baud rate, ID, Delay, Stroke limit, Compliance margin setting
- Goal Speed, Goal Position, Goal Current, LED Alarm, Shutdown setting
- Acceleration / Deceleration Setting

· Simple Motion Test

· System reset and Firmware update

· Motor Operating Rate, Voltage, Temperature, Position, Current real time monitoring

· Need optional PC USB Interface “IR-USB02” (Sold separately)

· Windows compatible mightyZAP manager PC software enables users to set various parameters & test motions. (Able to downloaded from our website for free)

· PC Software will be updated from time to time, so it is recommended for the user to download and update PC software properl
