[ 12D NANO Limit Switch Series ] - 15mm(0.59in) stroke, Corerd Motor
![[ 12D NANO Limit Switch Series ] - 15mm(0.59in) stroke, Corerd Motor](http://mightyzapusa.com/cdn/shop/files/250813_NANO_15mm.png?v=1755059998&width=3840)
Home > Products > 12D NANO Limit Switch Series > [ 12D NANO Limit Switch Series ] - 15mm(0.59in) stroke, Corerd Motor
12D NANO Limit Switch Series
Mini/Nano Size
Built-in Limit Switches
Max 22mm Stroke (12L / 12D MINI)
Max 15mm Stroke(12D NANO)
Heavy Duty, Durable 12V Coreless Moter Lineup (12L MINI)
Economical 12V / 7.4V Cored Motor Lineup (12D MINI & NANO)
| Rated Load | Stroke | Input Volt. : 12V | Rated Load / Max Speed (No Load) | Mechanical Self Lock (Z Axis Use) | Gear Ratio / Gear Type | Motor Type / Watt |
|---|---|---|---|---|---|---|
| 7N | 15mm | 12D-7S-15 | 7N / 30mm/s | No (Pay attention to application) |
30:1 / 3 line/ Engineering Plastic gears | Brushed Cored DC Motor / 0.26W |
| 12N | 12D-12S-15 | 12N / 11.25mm/s | Yes (Applicable) | 30:1 / 1 line / Engineering Plastic gears |
| Stroke | 15mm (± 1mm) | |||
|---|---|---|---|---|
| Repeatability (Unidirectional) | ± 500μm(± 0.5mm) | |||
| Mechanical Backlash | 400μm (0.4mm) | |||
| Rod Type | Engineering Plastic Rod | |||
| Motor Type | Brushed Cored DC Motor | |||
| Motor Watt | 0.26W | |||
| Recommended Duty Cycle | 20% | |||
| Input Voltage Range | 7 ~ 13V (Rated 12V) | |||
| Current Consumption | Input Voltage | Idle | Rated | Max (Stall) |
| 0mA | 20mA | 40mA | 200mA | |
| Audible Noise | Approx. 50db at 1m | |||
| Ingress Protection | IP-54 (Dust & Water Tight) | |||
| Size / Weight | 32(L)x21.5(W)x12(H)mm/ 17g | |||
| Operating Temperature | -10℃ ~ 60℃ | |||
| Wire Harness | Flexible PCB 5P | |||
| Standard Accessories | 2 x U-Type Bracket / 2 x D3x8.6 Hinge / 4 x ID1.5xOD4xT0.4 Snap Ring-E / 2 x M3x8 Screw / 1 x FPCB Connector | |||

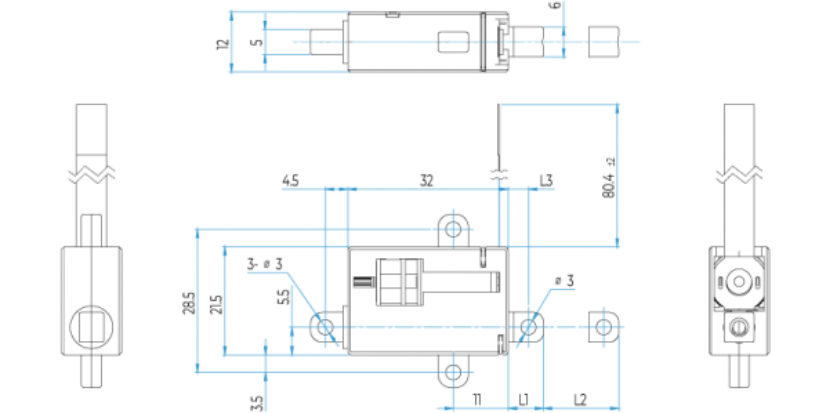

| INDEX | DIMENSION |
|---|---|
| L1 (MIN POSITION) | 7 ± 0.8 |
| L2 (MAX POSITION) | 15 ± 1 |
| L3 (STROKE) | 4 ± 0.8 |

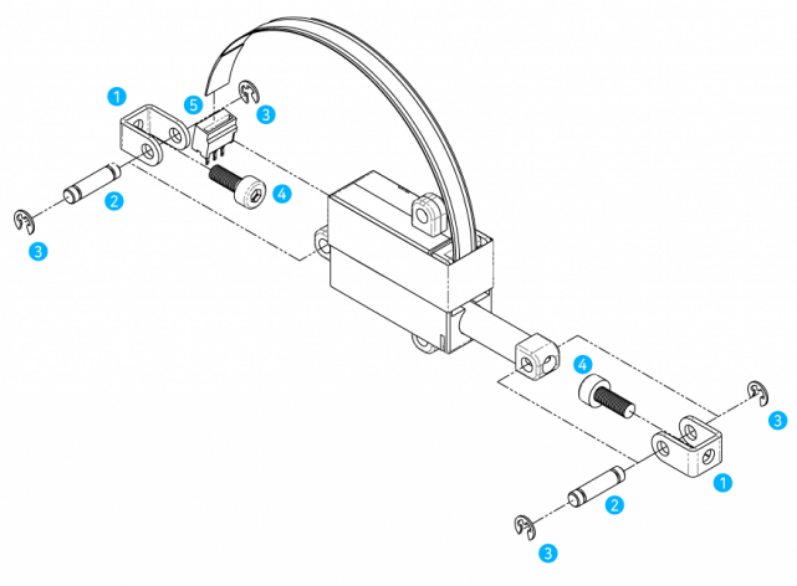

U-Type Bracket 2pcs
Hinge-Pin D3 x 8.6 2pc
E-Ring ID 1.5 x OD4 xT0.4 4pcs
M3 x 8 Screw 2pcs
F-PCB Connector 1pc
1
Insert
4
M3x8 screw into the middle hole of U-type Bracket and fix the screw to the user’s device. Align the center of the two side holes of U-type Bracket and the side hole of Rod, then insert
2
Hinge-pin. After the Hinge-pin protrudes from both ends of U-Bracket, fix the pin by two
3
E-rings.
1
Insert
4
M3x8 screw into the middle hole of U-type Bracket and fix the screw to the user’s device. Align the center of the two side holes of U-type Bracket and the side hole of Hinge on the rear case, then insert
2
Hinge-pin. After the Hinge-pin protrudes from both ends of U-Bracket, fix the pin by two
3
E-rings.
* Cuation : Either Rod or Rear case hinge must be mechanically unconstrained and must be structured to move freely along with the actuator.
Insert the Terminal of F-PCB so that it can make contact with the
5
connector pin. (See the picture below)
if inserted in the opposite direction, the actuator will not work.
· Setting for various operation parameters & memory parameters
- Baud rate, ID, Delay, Stroke limit, Compliance margin setting
- Goal Speed, Goal Position, Goal Current, LED Alarm, Shutdown setting
- Acceleration / Deceleration Setting
· Simple Motion Test
· System reset and Firmware update
· Motor Operating Rate, Voltage, Temperature, Position, Current real time monitoring
· Need optional PC USB Interface “IR-USB02” (Sold separately)
· Windows compatible mightyZAP manager PC software enables users to set various parameters & test motions. (Able to downloaded from our website for free)
· PC Software will be updated from time to time, so it is recommended for the user to download and update PC software properl
