Product description

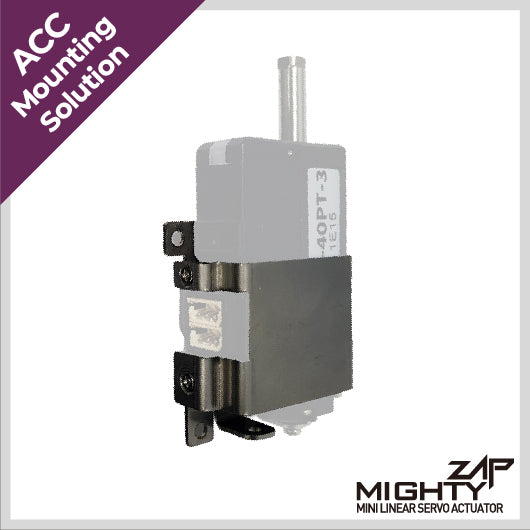

  • Use IR-MB02 metal bracket to mount the servo onto applications tightly. Referring to published drawings, user is also able to make this bracket at their end if necessary.
  • This is for 22mm(0.86in), 26mm(1.02in), 27mm(1.06in) stroke version as 40mm(1.57in)~96mm(3.78in) stroke versions have built-in mounting holes on it.

 - For 12Lf/L12(27mm,1.06in), D12/D7(26mm,1.02in), 12L/12D(22mm,0.86in) series.

 - Not compatible with 17Lf series.



How to Use / PIN Map

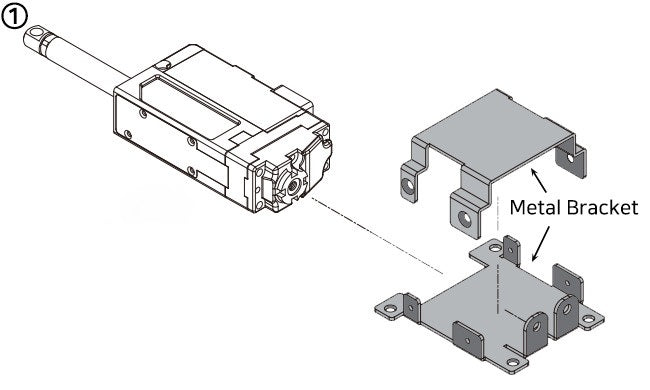

Installation

Please be aware of sharp edges of metal bracket (IR-MB02) when you assemble.

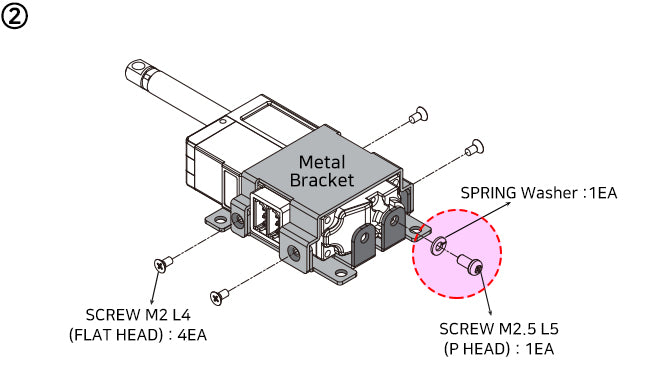

Make sure to put spring washer before M2.6 L5 screw is applied. (See Red circle on image#② above.) Otherwise, it may damage the servo motor inside.

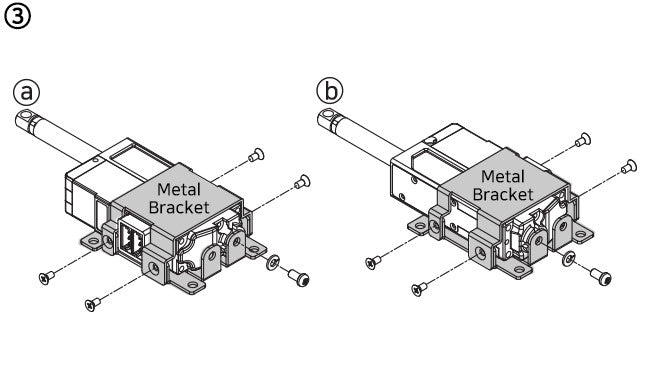

MightyZAP can be mounted by IR-MB02 without directivity. See Installation method A and B above.

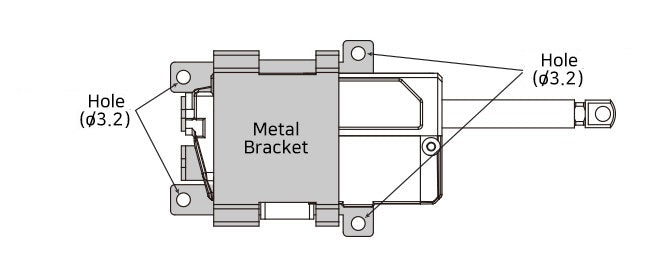

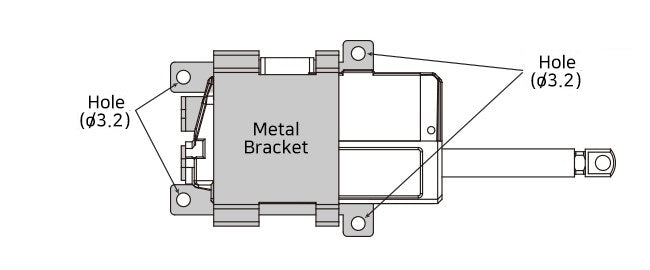

Apply M3 screws to 4 x M3 mounting holes.(M3 screws are not included.)
